Combined regulator and safety shut-off valves

Ganesh Enterprise are also offering Dungs Make Air & Gas Pressure Switch with different range and size.

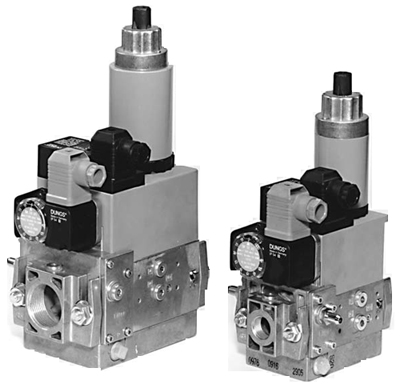

Combined Regulator And Safety Shut Off Valves

MB-ZRD(LE) 405 - 412 B01

Technical description : • Dirt trap: microfilter
• One regulator and two main valves: B01
• One one-stage valve and one two-stage valve
• One valve is fast opening, one valve is slow or fast opening
• Solenoid valves up to 360 mbar (36 kPa) as per DIN EN 161 Class A Group 2
• Sensitive setting of output pressure by proportional regulator as per DIN EN 88
Class A Group 2 • High flow rates with low pressure drop
• DC solenoid drive interference degree N
• Main volume restrictor and partial volume restrictor at valve V2
• Hydraulic opening delay
• Flange connections with pipe threads as per ISO 7/1
• Simple mounting, compact, light-weight

Application : The modular system permits individual solutions in gas safety and regulator
engineering. Suitable for gases of families 1, 2, 3 and other neutral gaseous media.

Approvals :
• EC type test approval as per EC Gas Appliance Directive: MB-ZR...405-412 B01 CE-0085 AP 3156
• EC type test approval as per EC Pressure Equipment Directive: MB-ZR...405-412 B01 CE0036
• Approvals in other important gas consuming countries.
