Saving Upto 60% On Fuel Cost

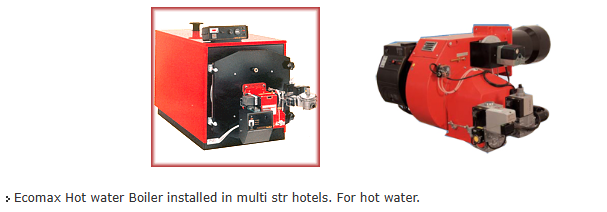

Ecoflam Hot Water Burner

• Completely sealed aluminum casing with a new modern design cover.
• New high efficiency fan ventilation system (HPV) allowing easy matching with boilers having high combustion chamber back pressure.
• Compact burner dimension with low noise levels.
• New air damper with progressive micrometric air regulation adjustable in 3 positions.
• Air damper with 60 or 80 mm snorkel adaptor (optional).
• New electrical wiring simple to disassemble for easy maintenance.
• Combustion head easy to assemble and adjust for fine set up.
• Single bolt burner fixing and the possibility to firmly secure it to the flange in three different positions for easier maintenance.
• Ease of installation with adjustable flange (optional only for TL from Max 1 to Max 12).
• Monoblock electrodes for easy and steady installation into the nozzle even after maintenance.
• Hi - Low version available with compact hydraulic system (Max AB HS).
• Low NOx version with yellow flame developed by Ecoflam.
• Max range available with "D" pump for light oil with viscosity up to 200 cTs.
• Kit for biodiesel on request.
• Continuous ventilation on request.

MODELS	Output Max.		Output Min.
	kW	kcal/hx1000	kW	kcal/hx1000
MAX 1	41.4	35.7	17,6	15,3
MAX 1 Low NOx	35.5	30.6	17,6	15,3
MAX 4	59	51	20	17,34
MAX 4 Low NOx	47.4	40.8	22,5	19,35
MAX 8	105	90.78	47	40,8
MAX 12	130	112.2	60	52
MAX 15	190	163.8	73.4	63.24
MAX 20	237	204	86.4	74.460
MAX 30	319	275.4	110	94.860
MAX P15 / P15AB HS	190	163.8	77	66.3
MAX P25 / P25AB HS	300	259.08	102	87.72
Fuel : Light oil (L.C.V. 10.200 kcal/kg max. visc 1,5°E at 20°C)
Combustible : Fioul domestique (L.C.V. 10.200 kcal/kg max. visc 1,5°E at 20°C)

* : Minimum/maximum gas inlet pressures depend by the gas train matched to the burner. The values are written on the gas trains manual.

LB1978 Max Gas 40 P - 70 P - 105 P - 120 P
