ECOFLAM Gas Burner

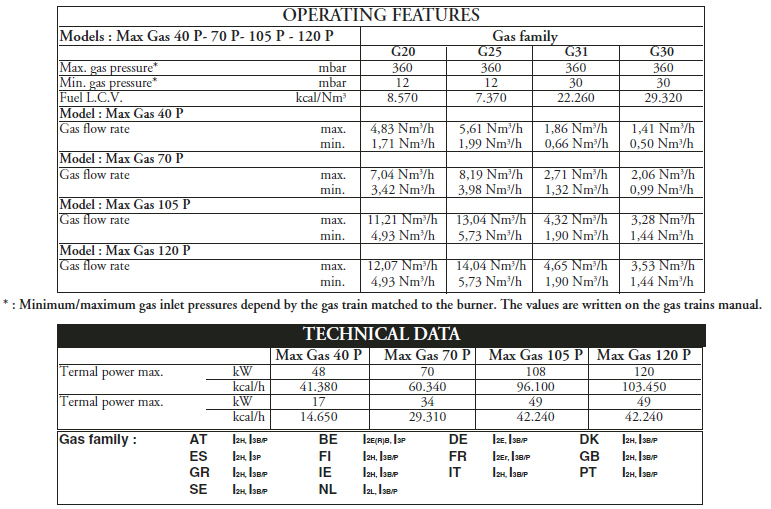

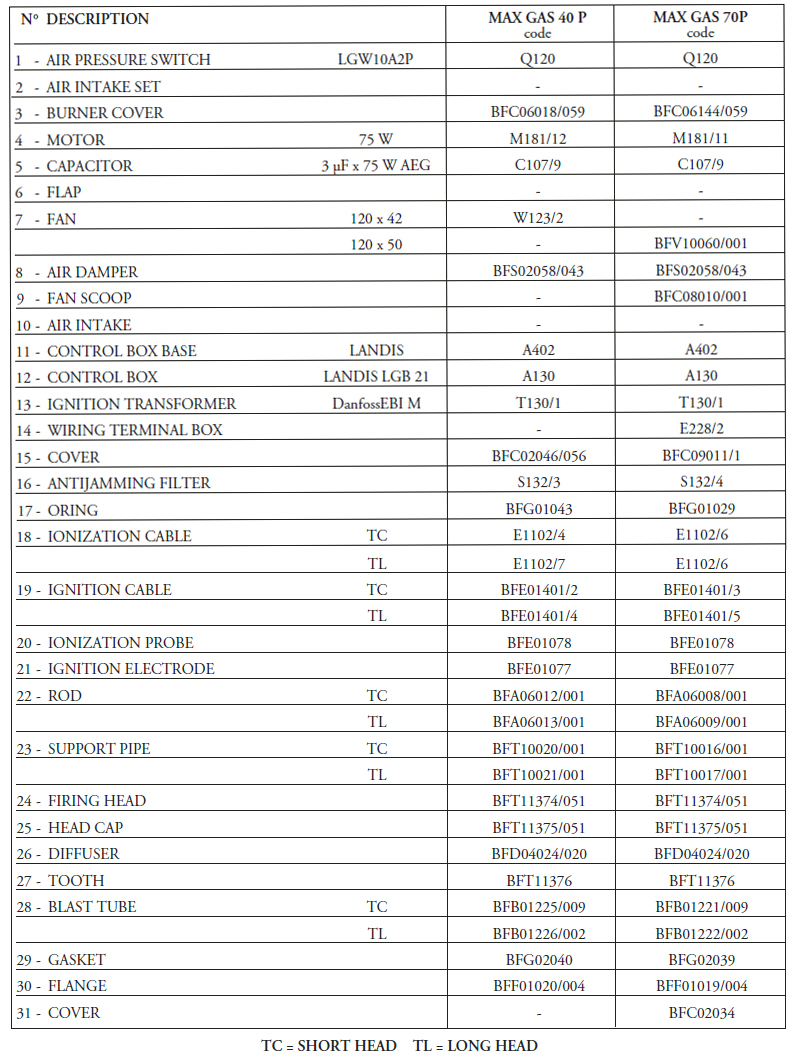

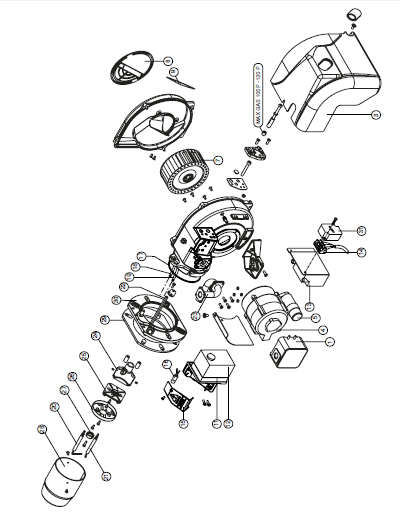

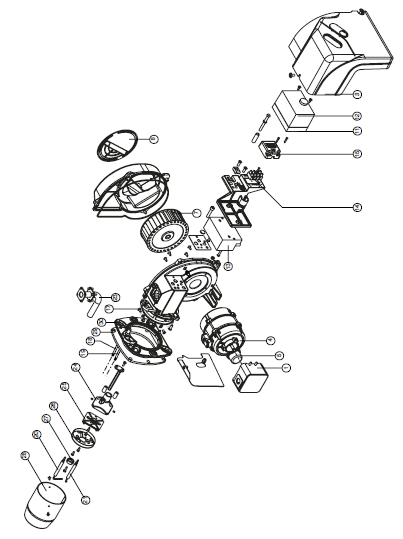

MAX GAS 40 P
MAX GAS 70 P
MAX GAS 105 P
MAX GAS 120 P
Low Nox


Technical Specification :




ECOFLAM Gas Burner

MONOBLOCK 100 - 17000 kW
DUOBLOCK 180 - 25000 kW

MAIN FEATURES

• Aluminium casing up to Blu 2000.1 and steel casing from 3000.1 with electrical panel integrated on the burner (standard IP40). Version in    loosen form or with remote switch cabinet on request (IP54).
• New high efficiency fan ventilator designed to give flame stability and easy matching.
• Adjustable combustion head for fine tuning / matching with different shapes of combustion chamber.
• Easy maintenance of firing head from the burner top cover.
• Low NOx version available in class 3 < 80mg /kWh and in class 2 < 120mg/kWh as per EN676.
• Hi - Low version with easy and fast butterfly ratio system available from Blu 500.1 up to Blu 2000.1.
• Progressive version with "mechanical movable head" with turndown 1: 5 (standard turndown 1:3).
• Modulating version with PID system controller with digital set point display and real time value (PID RWF 40 or LMV 51/52).
• Firing head with adjustable system for primary air that changes according to the output required.
• On request tailored solutions of flame shape.
• Duoblock range 180 - 25000 kW.
• Continuous ventilation on request.
• Version for LPG, BIOGAS and TOWNGAS on request.
• Special version for all type of applications and fuel charachteristics on request.

Technical Data

MODELS Output
Max.		 Output
Min.
  kW kcal/hx1000 kW kcal/hx1000
BLU 350.1 Low NOx 350 301 100 126,42
BLU 400.1 400 345 100 126,42
BLU 500.1 Low NOx 500 430 230 197,8
BLU 500.1 500 430 180 155,2
BLU 700.1 Low NOx 700 602 270 232,2
BLU 700.1 700 602 225 194
BLU 1000.1 Low NOx 875 752,5 280 240,8
BLU 1000.1 970 836,2 245 211,2
BLU 1200.1 Low NOx 1.100 946 290 249,4
BLU 1200.1 1.200 1034,5 260 224,14
BLU 1500.1 Low NOx 1.550 1336,2 300 259
BLU 1700.1 1.770 1.526 342 295
BLU 2000.1 2.150 1.853,45 414 356,9

BLU 3000.1 3.000 2.586 630 543.1
BLU 4000.1 3.900 3.362 875 754.3
BLU 5000.1 5.000 4.310 1.200 1.034.5
BLU 6000.1 5.800 5.000 1.500 1.290
BLU 7000.1 7.500 6.465 1.500 1.290
BLU 8000.1 8.500 7.327,5 2.000 1.724
BLU 10000.1 10.500 9.052 2.500 2.155
BLU 12000.1 13.000 11.207 2.700 2.327,6
BLU 15000.1 15.000 12.931 3.690 3.181
BLU 18000.1 17.000 14.655 4.000 3.448,27

ECOFLAM Gas Burner

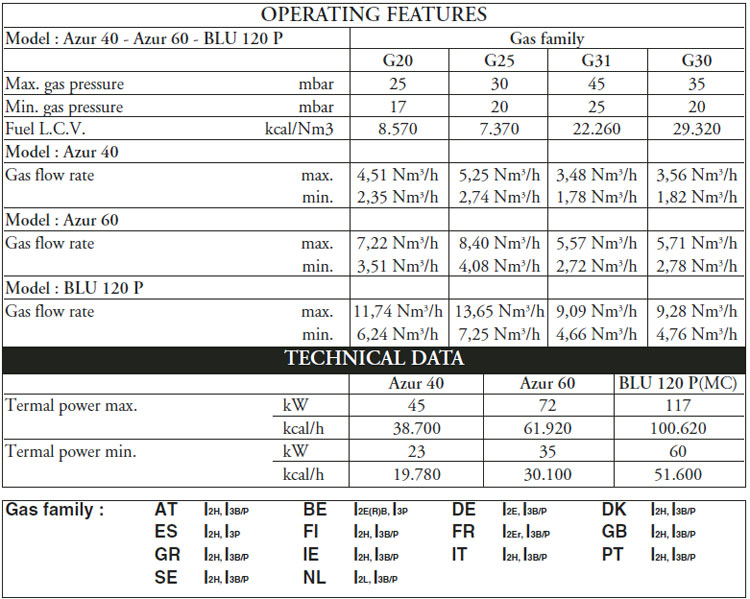

AZUR 40
AZUR 60
BLU 120 P
BLU120 P MC




AZUR 40
AZUR 60
BLU 120 P
BLU120 P MC
      Technical Specification :

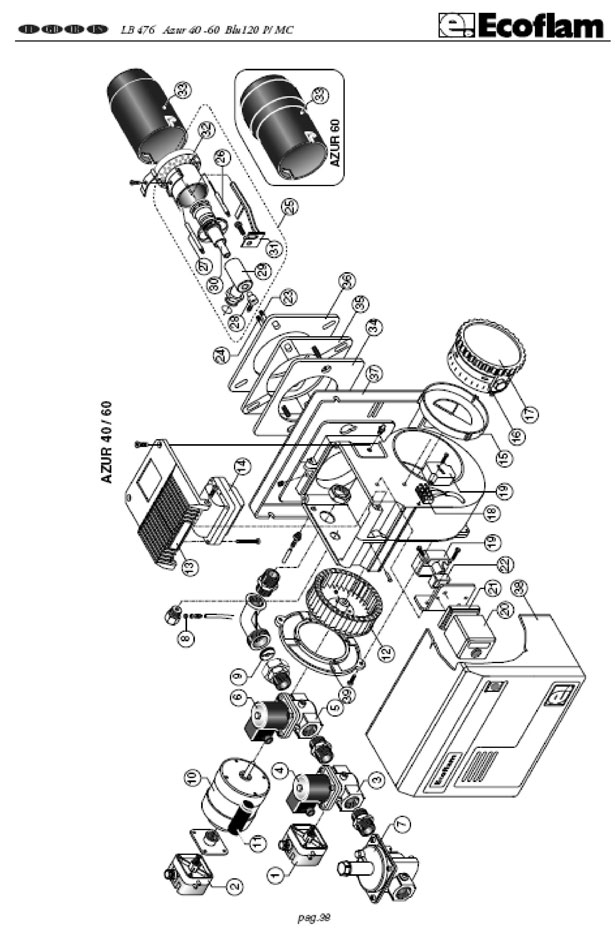

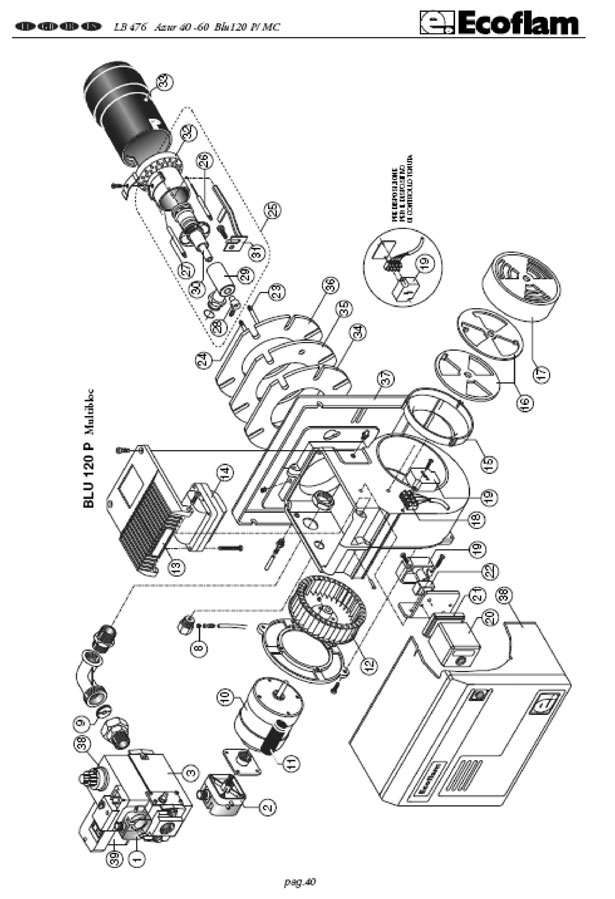

No. DESCRIPTION   AZUR 40 AZUR 60
Code Code
1 Gas Pressure Switch KROMSC. DG50B Q114 Q114
2 Air Pressure Switch DUNGS LGW3A2 Q111 Q111
3 Gas Valve BRAHMA EG12S V142 V142
4 Coil BRAHMA V209 V209
5 Gas Valve BRAHMA E12SR V142/1 V142/1
6 Coil BRAHMA V209 V209
7 Gas Regulator FSDC 20 3/4 S512/1 S512/1
8 Gauged Sphere - Y1005/5 Y1005/5
9 Diaphragm 5,1 mm (G30-G31) BFT04105/4 BFT04105/4
    6,4 mm (G20-G25) BFT04105/5 -
10 Motor SIMEL 50 W M122/1 M122/1
11 Capacitor 2 µF C107 C107
12 Fan 120×50 BFV10051/001 -
    124×60 - BFV10055/001
13 Cover - BFC09052 BFC09052
14 Ignition Transformer DanfossEBI M T130/1 T130/1
15 Air Conveyor - GRMP006/1 GRMP006/1
16 Air Damper - BFC04011/001 BFC04011/001
17 Air Intake - BFC04017 BFC04017
18 Wiring Terminal Box - E228/3 E228/3
19 Cover - BFC02007 BFC02007
20 Control Box LANDIS LGB 21 A130 A130
    SATRONIC DLG 976 A162 A162
21 Control Box Base LANDIS A402 A402
    SATRONIC A417 A417
22 Antijamming Filter - S132/4 S132/4
23 Ignition Cable TC BFE01401/1 BFE01401/1
    TL BFE01401/2 BFE01401/2
24 Ionization Cable TC E1102/4 E1102/4
    TL E1102/7 E1102/7
25 Firing Head TC GRTT0100/775 GRTT0100/774
    TL GRTT0100/777 GRTT0100/778
26 Ignition Electrode - BFE01039/1 BFE01039/1
27 Ionization Probe - BFE01039/3 BFE01039/3
28 Venturi Pipe - BFT11368/2 BFT11368/2
29 Support Pipe - BFT11351/201 BFT11351/201
30 Internal Group TC BFT11364/501 BFT11364/101
    TL BFT11364/601 BFT11364/201
31 Rod TC BFA06007/101 BFA06007/101
    TL BFA06007/201 BFA06007/201
32 Diffuser - BFT11373/1 BFT11373/2
33 Blast Tube TC BFB01212/103 BFB01408/102
    TL BFB01212/203 BFB01408/202
34 Gasket - BFG02009/1 BFG02009/1
35 Flange - BFF01002 BFF01003
36 Gasket - BFG02011 BFG02011
37 Shield - BFC07101/1 BFC07101/1
38 Housing - BFC06102/1 BFC06102/1

Max Eco Flame Gas Burner

Supported by a team of assiduous work force, we are instrumental in presenting MAX Eco Flame Gas Burner. Offered array is designed and developed as per the specifications provided by the patrons in addition with the adopting of efficient production techniques ongoing in the market. Moreover, these products are fabricated by utilizing optimum grade raw material in accordance with the industry standards and guidelines.


BLU Eco Flame Gas Burner

We are a reckoned entity engaged in offering BLU Eco Flame Gas Burner . Our product range is designed and developed as per ongoing market trends to bring forth an outstanding range. This range is fabricated by making use of qualitative raw material that is sourced from the accredited vendors of the industry. Besides, patrons can avail this range from us in various designs, sizes and grades.

Other details :

Other details :

Max gas is sealed with aluminum casing wrapped with a new modern design cover
New high efficiency fan ventilation system (HPV) allows easy matching with boilers having high combustion chamber pressure Compact burner dimension with low noise levels
New air damper with progressive micro-metric air regulation adjustable in 3 positions


Maior Gas Burner

We are a distinguished organization engaged in presenting Maior Gas Burner to the deemed clients. This offered range of products is manufactured utilizing optimum-grade raw material at our premises by further, employing advanced technology and tools under the supervision of experienced professionals. Moreover, this range is available with us as per patrons needs and demands in the most promising manner at market leading prices.

Some details :
  • Longer service life
  • Smooth finishing
  • Compact designs
  • Low maintenance
Max Gas Burner

Our team of adroit professionals work in close bonds with one another to present a commendable assortment of Max Gas Burner . These offered products are fabricated by making use of durable grade raw material in addition with advent technology and modern machinery in total conformity with the industry laid quality standards and guidelines. Moreover, patrons can avail this range from us in various sizes, grades and other specifications.

Some details :
  • Completely sealed aluminum casing with a new modern design cover
  • Optimum usage
  • Low maintenance
  • Low maintenance
Models Output max Output min Motor
kW kcal / hx1000 kW kcal / hx1000 W
MAX 1 41,4 35,7 17,6 15,3 75
MAX 1 Low NOx 35,5 30,6 17,6 15,3 75
MAX 4 59 51 20 1734 75
MAX 4 Low NOx 47,3 40,8 17,6 15,3 75
MAX 8 105 9078 47 40,8 100
MAX 12 130 112,2 60 52 130
MAX 15 190 163,8 73,4 6324 130
MAX 20 237 204 86,4 7446 200
MAX 30 319 275,4 110 9486 200
MAX P15 / P15AB HS 190 163,8 77 66,3 130
MAX P25 / P25AB HS 300 25908 102 8772 200
